Brings SingleCellExperiment to the tidyverse!

Website: tidySingleCellExperiment

Please also have a look at

  • tidyseurat for tidy manipulation of Seurat objects
  • tidybulk for tidy bulk RNA-seq data analysis
  • nanny for tidy high-level data analysis and manipulation
  • tidygate for adding custom gate information to your tibble
  • tidyHeatmap for heatmaps produced with tidy principles

Introduction

tidySingleCellExperiment provides a bridge between Bioconductor single-cell packages @amezquita2019orchestrating and the tidyverse @wickham2019welcome. It creates an invisible layer that enables viewing the Bioconductor SingleCellExperiment object as a tidyverse tibble, and provides SingleCellExperiment-compatible dplyr, tidyr, ggplot and plotly functions. This allows users to get the best of both Bioconductor and tidyverse worlds.

Functions/utilities available

SingleCellExperiment-compatible Functions Description
all After all tidySingleCellExperiment is a SingleCellExperiment object, just better
tidyverse Packages Description
dplyr All dplyr tibble functions (e.g. tidySingleCellExperiment::select)
tidyr All tidyr tibble functions (e.g. tidySingleCellExperiment::pivot_longer)
ggplot2 ggplot (tidySingleCellExperiment::ggplot)
plotly plot_ly (tidySingleCellExperiment::plot_ly)
Utilities Description
tidy Add tidySingleCellExperiment invisible layer over a SingleCellExperiment object
as_tibble Convert cell-wise information to a tbl_df
join_features Add feature-wise information, returns a tbl_df

Installation

From Bioconductor (under submission)

if (!requireNamespace("BiocManager", quietly=TRUE))
    install.packages("BiocManager")

BiocManager::install("tidySingleCellExperiment")

From GitHub

devtools::install_github("stemangiola/tidySingleCellExperiment")

Load libraries used in this vignette.

# Bioconductor single-cell packages
library(scater)
library(scran)
library(SingleR)
library(SingleCellSignalR)

# Tidyverse-compatible packages
library(ggplot2)
library(purrr)
library(tidyHeatmap)

# Both
library(tidySingleCellExperiment)

Create tidySingleCellExperiment, the best of both worlds!

This is a SingleCellExperiment object but it is evaluated as a tibble. So it is compatible both with SingleCellExperiment and tidyverse.

pbmc_small_tidy <- tidySingleCellExperiment::pbmc_small

It looks like a tibble

pbmc_small_tidy

## # A tibble: 80 x 17
##    cell  orig.ident nCount_RNA nFeature_RNA RNA_snn_res.0.8 letter.idents groups
##    <chr> <fct>           <dbl>        <int> <fct>           <fct>         <chr>
##  1 ATGC… SeuratPro…         70           47 0               A             g2
##  2 CATG… SeuratPro…         85           52 0               A             g1
##  3 GAAC… SeuratPro…         87           50 1               B             g2
##  4 TGAC… SeuratPro…        127           56 0               A             g2
##  5 AGTC… SeuratPro…        173           53 0               A             g2
##  6 TCTG… SeuratPro…         70           48 0               A             g1
##  7 TGGT… SeuratPro…         64           36 0               A             g1
##  8 GCAG… SeuratPro…         72           45 0               A             g1
##  9 GATA… SeuratPro…         52           36 0               A             g1
## 10 AATG… SeuratPro…        100           41 0               A             g1
## # … with 70 more rows, and 10 more variables: RNA_snn_res.1 <fct>, file <chr>,
## #   ident <fct>, PC_1 <dbl>, PC_2 <dbl>, PC_3 <dbl>, PC_4 <dbl>, PC_5 <dbl>,
## #   tSNE_1 <dbl>, tSNE_2 <dbl>

But it is a SingleCellExperiment object after all

pbmc_small_tidy@assays

## An object of class "SimpleAssays"
## Slot "data":
## List of length 2
## names(2): counts logcounts

Annotation polishing

We may have a column that contains the directory each run was taken from, such as the “file” column in pbmc_small_tidy.

pbmc_small_tidy$file[1:5]

## [1] "../data/sample2/outs/filtered_feature_bc_matrix/"
## [2] "../data/sample1/outs/filtered_feature_bc_matrix/"
## [3] "../data/sample2/outs/filtered_feature_bc_matrix/"
## [4] "../data/sample2/outs/filtered_feature_bc_matrix/"
## [5] "../data/sample2/outs/filtered_feature_bc_matrix/"

We may want to extract the run/sample name out of it into a separate column. Tidyverse extract can be used to convert a character column into multiple columns using regular expression groups.

# Create sample column
pbmc_small_polished <-
    pbmc_small_tidy %>%
    extract(file, "sample", "../data/([a-z0-9]+)/outs.+", remove=FALSE)

# Reorder to have sample column up front
pbmc_small_polished %>%
    select(sample, everything())

## # A tibble: 80 x 18
##    cell  sample orig.ident nCount_RNA nFeature_RNA RNA_snn_res.0.8 letter.idents
##    <chr> <chr>  <fct>           <dbl>        <int> <fct>           <fct>
##  1 ATGC… sampl… SeuratPro…         70           47 0               A
##  2 CATG… sampl… SeuratPro…         85           52 0               A
##  3 GAAC… sampl… SeuratPro…         87           50 1               B
##  4 TGAC… sampl… SeuratPro…        127           56 0               A
##  5 AGTC… sampl… SeuratPro…        173           53 0               A
##  6 TCTG… sampl… SeuratPro…         70           48 0               A
##  7 TGGT… sampl… SeuratPro…         64           36 0               A
##  8 GCAG… sampl… SeuratPro…         72           45 0               A
##  9 GATA… sampl… SeuratPro…         52           36 0               A
## 10 AATG… sampl… SeuratPro…        100           41 0               A
## # … with 70 more rows, and 11 more variables: groups <chr>,
## #   RNA_snn_res.1 <fct>, file <chr>, ident <fct>, PC_1 <dbl>, PC_2 <dbl>,
## #   PC_3 <dbl>, PC_4 <dbl>, PC_5 <dbl>, tSNE_1 <dbl>, tSNE_2 <dbl>

Preliminary plots

Set colours and theme for plots.

# Use colourblind-friendly colours
friendly_cols <- dittoSeq::dittoColors()

# Set theme
my_theme <-
    list(
        scale_fill_manual(values=friendly_cols),
        scale_color_manual(values=friendly_cols),
        theme_bw() +
            theme(
                panel.border=element_blank(),
                axis.line=element_line(),
                panel.grid.major=element_line(size=0.2),
                panel.grid.minor=element_line(size=0.1),
                text=element_text(size=12),
                legend.position="bottom",
                aspect.ratio=1,
                strip.background=element_blank(),
                axis.title.x=element_text(margin=margin(t=10, r=10, b=10, l=10)),
                axis.title.y=element_text(margin=margin(t=10, r=10, b=10, l=10))
            )
    )

We can treat pbmc_small_polished as a tibble for plotting.

Here we plot number of features per cell.

pbmc_small_polished %>%
    tidySingleCellExperiment::ggplot(aes(nFeature_RNA, fill=groups)) +
    geom_histogram() +
    my_theme

## `stat_bin()` using `bins = 30`. Pick better value with `binwidth`.

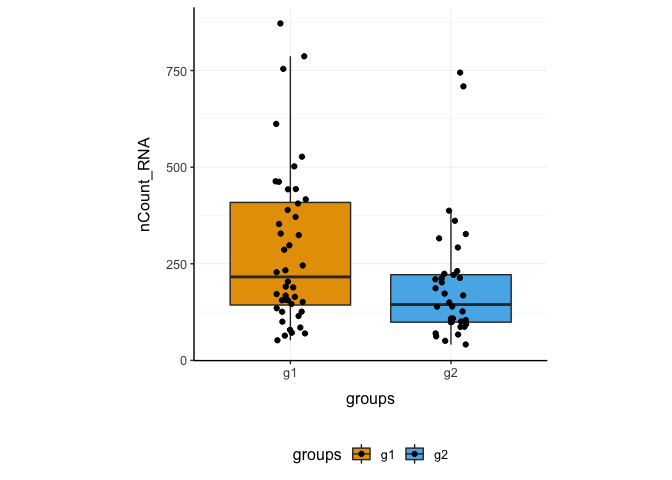

Here we plot total features per cell.

pbmc_small_polished %>%
    tidySingleCellExperiment::ggplot(aes(groups, nCount_RNA, fill=groups)) +
    geom_boxplot(outlier.shape=NA) +
    geom_jitter(width=0.1) +
    my_theme

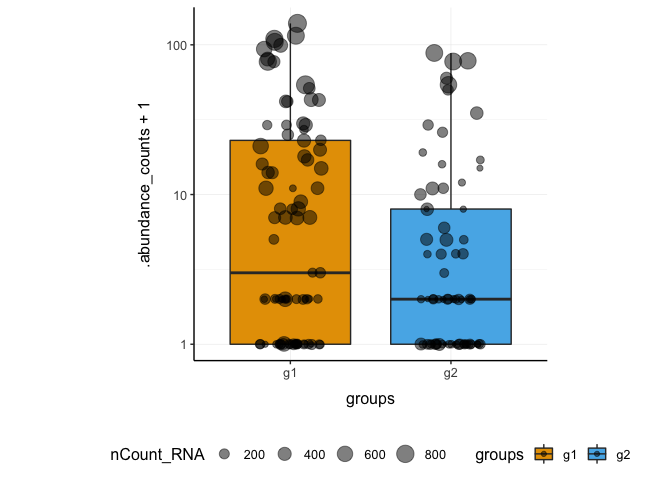

Here we plot abundance of two features for each group.

pbmc_small_polished %>%
    join_features(features=c("HLA-DRA", "LYZ")) %>%
    ggplot(aes(groups, abundance_counts + 1, fill=groups)) +
    geom_boxplot(outlier.shape=NA) +
    geom_jitter(aes(size=nCount_RNA), alpha=0.5, width=0.2) +
    scale_y_log10() +
    my_theme

## tidySingleCellExperiment says: A data frame is returned for independent data analysis.

Preprocess the dataset

We can also treat pbmc_small_polished as a SingleCellExperiment object and proceed with data processing with Bioconductor packages, such as scran @lun2016pooling and scater @mccarthy2017scater.

# Identify variable genes with scran
variable_genes <-
    pbmc_small_polished %>%
    modelGeneVar() %>%
    getTopHVGs(prop=0.1)

# Perform PCA with scater
pbmc_small_pca <-
    pbmc_small_polished %>%
    runPCA(subset_row=variable_genes)

## Warning in check_numbers(k = k, nu = nu, nv = nv, limit = min(dim(x)) - : more
## singular values/vectors requested than available

## Warning in (function (A, nv = 5, nu = nv, maxit = 1000, work = nv + 7, reorth =
## TRUE, : You're computing too large a percentage of total singular values, use a
## standard svd instead.

pbmc_small_pca

## # A tibble: 80 x 18
##    cell  orig.ident nCount_RNA nFeature_RNA RNA_snn_res.0.8 letter.idents groups
##    <chr> <fct>           <dbl>        <int> <fct>           <fct>         <chr>
##  1 ATGC… SeuratPro…         70           47 0               A             g2
##  2 CATG… SeuratPro…         85           52 0               A             g1
##  3 GAAC… SeuratPro…         87           50 1               B             g2
##  4 TGAC… SeuratPro…        127           56 0               A             g2
##  5 AGTC… SeuratPro…        173           53 0               A             g2
##  6 TCTG… SeuratPro…         70           48 0               A             g1
##  7 TGGT… SeuratPro…         64           36 0               A             g1
##  8 GCAG… SeuratPro…         72           45 0               A             g1
##  9 GATA… SeuratPro…         52           36 0               A             g1
## 10 AATG… SeuratPro…        100           41 0               A             g1
## # … with 70 more rows, and 11 more variables: RNA_snn_res.1 <fct>, file <chr>,
## #   sample <chr>, ident <fct>, PC1 <dbl>, PC2 <dbl>, PC3 <dbl>, PC4 <dbl>,
## #   PC5 <dbl>, tSNE_1 <dbl>, tSNE_2 <dbl>

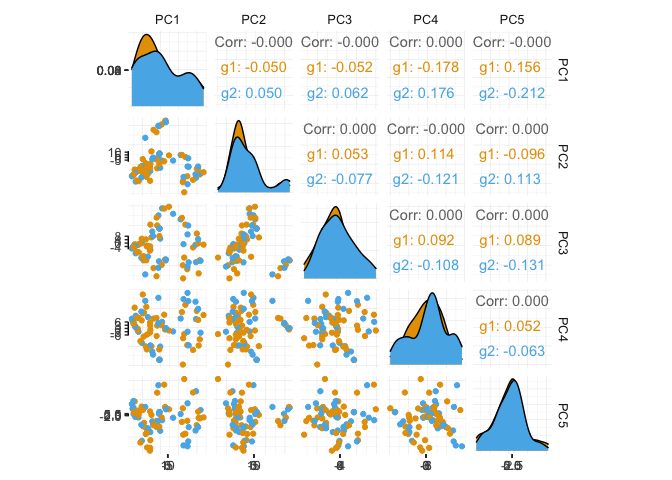

If a tidyverse-compatible package is not included in the tidySingleCellExperiment collection, we can use as_tibble to permanently convert tidySingleCellExperiment into a tibble.

# Create pairs plot with GGally
pbmc_small_pca %>%
    as_tibble() %>%
    select(contains("PC"), everything()) %>%
    GGally::ggpairs(columns=1:5, ggplot2::aes(colour=groups)) +
    my_theme

## Registered S3 method overwritten by 'GGally':
##   method from
##   +.gg   ggplot2

Identify clusters

We can proceed with cluster identification with scran.

pbmc_small_cluster <- pbmc_small_pca

# Assign clusters to the 'colLabels' of the SummarizedExperiment object
colLabels(pbmc_small_cluster) <-
    pbmc_small_pca %>%
    buildSNNGraph(use.dimred="PCA") %>%
    igraph::cluster_walktrap() %$%
    membership %>%
    as.factor()

## Warning in (function (to_check, X, clust_centers, clust_info, dtype, nn, :
## detected tied distances to neighbors, see ?'BiocNeighbors-ties'

# Reorder columns
pbmc_small_cluster %>% select(label, everything())

## # A tibble: 80 x 19
##    cell  label orig.ident nCount_RNA nFeature_RNA RNA_snn_res.0.8 letter.idents
##    <chr> <fct> <fct>           <dbl>        <int> <fct>           <fct>
##  1 ATGC… 2     SeuratPro…         70           47 0               A
##  2 CATG… 2     SeuratPro…         85           52 0               A
##  3 GAAC… 2     SeuratPro…         87           50 1               B
##  4 TGAC… 1     SeuratPro…        127           56 0               A
##  5 AGTC… 2     SeuratPro…        173           53 0               A
##  6 TCTG… 2     SeuratPro…         70           48 0               A
##  7 TGGT… 1     SeuratPro…         64           36 0               A
##  8 GCAG… 2     SeuratPro…         72           45 0               A
##  9 GATA… 2     SeuratPro…         52           36 0               A
## 10 AATG… 2     SeuratPro…        100           41 0               A
## # … with 70 more rows, and 12 more variables: groups <chr>,
## #   RNA_snn_res.1 <fct>, file <chr>, sample <chr>, ident <fct>, PC1 <dbl>,
## #   PC2 <dbl>, PC3 <dbl>, PC4 <dbl>, PC5 <dbl>, tSNE_1 <dbl>, tSNE_2 <dbl>

And interrogate the output as if it was a regular tibble.

# Count number of cells for each cluster per group
pbmc_small_cluster %>%
    tidySingleCellExperiment::count(groups, label)

## tidySingleCellExperiment says: A data frame is returned for independent data analysis.

## # A tibble: 8 x 3
##   groups label     n
##   <chr>  <fct> <int>
## 1 g1     1        12
## 2 g1     2        14
## 3 g1     3        14
## 4 g1     4         4
## 5 g2     1        10
## 6 g2     2        11
## 7 g2     3        10
## 8 g2     4         5

We can identify and visualise cluster markers combining SingleCellExperiment, tidyverse functions and tidyHeatmap @mangiola2020tidyheatmap

# Identify top 10 markers per cluster
marker_genes <-
    pbmc_small_cluster %>%
    findMarkers(groups=pbmc_small_cluster$label) %>%
    as.list() %>%
    map(~ .x %>%
        head(10) %>%
        rownames()) %>%
    unlist()

# Plot heatmap
pbmc_small_cluster %>%
    join_features(features=marker_genes) %>%
    group_by(label) %>%
    heatmap(feature, cell, abundance_counts, .scale="column")

## tidySingleCellExperiment says: A data frame is returned for independent data analysis.

Reduce dimensions

We can calculate the first 3 UMAP dimensions using the SingleCellExperiment framework and scater.

pbmc_small_UMAP <-
    pbmc_small_cluster %>%
    runUMAP(ncomponents=3)

And we can plot the result in 3D using plotly.

pbmc_small_UMAP %>%
    plot_ly(
        x=~`UMAP1`,
        y=~`UMAP2`,
        z=~`UMAP3`,
        color=~label,
        colors=friendly_cols[1:4]
    )

plotly screenshot

Cell type prediction

We can infer cell type identities using SingleR @aran2019reference and manipulate the output using tidyverse.

# Get cell type reference data
blueprint <- celldex::BlueprintEncodeData()

## snapshotDate(): 2020-09-04

## see ?celldex and browseVignettes('celldex') for documentation

## loading from cache

## see ?celldex and browseVignettes('celldex') for documentation

## loading from cache

# Infer cell identities
cell_type_df <-
    pbmc_small_UMAP@assays@data$logcounts %>%
    Matrix::Matrix(sparse=TRUE) %>%
    SingleR(
        ref=blueprint,
        labels=blueprint$label.main
    ) %>%
    as.data.frame() %>%
    as_tibble(rownames="cell") %>%
    select(cell, first.labels)

# Join UMAP and cell type info
pbmc_small_cell_type <-
    pbmc_small_UMAP %>%
    left_join(cell_type_df, by="cell")

# Reorder columns
pbmc_small_cell_type %>%
    tidySingleCellExperiment::select(cell, first.labels, everything())

## # A tibble: 80 x 23
##    cell  first.labels orig.ident nCount_RNA nFeature_RNA RNA_snn_res.0.8
##    <chr> <chr>        <fct>           <dbl>        <int> <fct>
##  1 ATGC… CD4+ T-cells SeuratPro…         70           47 0
##  2 CATG… CD8+ T-cells SeuratPro…         85           52 0
##  3 GAAC… CD8+ T-cells SeuratPro…         87           50 1
##  4 TGAC… CD4+ T-cells SeuratPro…        127           56 0
##  5 AGTC… CD4+ T-cells SeuratPro…        173           53 0
##  6 TCTG… CD4+ T-cells SeuratPro…         70           48 0
##  7 TGGT… CD4+ T-cells SeuratPro…         64           36 0
##  8 GCAG… CD4+ T-cells SeuratPro…         72           45 0
##  9 GATA… CD8+ T-cells SeuratPro…         52           36 0
## 10 AATG… CD4+ T-cells SeuratPro…        100           41 0
## # … with 70 more rows, and 17 more variables: letter.idents <fct>,
## #   groups <chr>, RNA_snn_res.1 <fct>, file <chr>, sample <chr>, ident <fct>,
## #   label <fct>, PC1 <dbl>, PC2 <dbl>, PC3 <dbl>, PC4 <dbl>, PC5 <dbl>,
## #   tSNE_1 <dbl>, tSNE_2 <dbl>, UMAP1 <dbl>, UMAP2 <dbl>, UMAP3 <dbl>

We can easily summarise the results. For example, we can see how cell type classification overlaps with cluster classification.

# Count number of cells for each cell type per cluster
pbmc_small_cell_type %>%
    count(label, first.labels)

## tidySingleCellExperiment says: A data frame is returned for independent data analysis.

## # A tibble: 9 x 3
##   label first.labels     n
##   <fct> <chr>        <int>
## 1 1     CD4+ T-cells     2
## 2 1     CD8+ T-cells     8
## 3 1     NK cells        12
## 4 2     B-cells         10
## 5 2     CD4+ T-cells     5
## 6 2     CD8+ T-cells     3
## 7 2     Monocytes        7
## 8 3     Monocytes       24
## 9 4     Erythrocytes     9

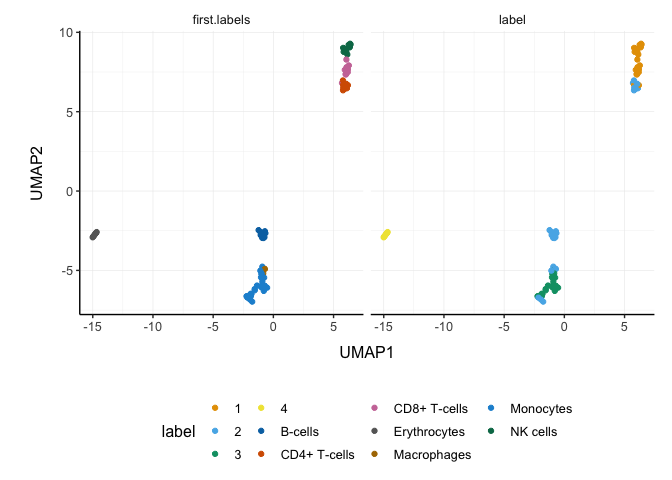

We can easily reshape the data for building information-rich faceted plots.

pbmc_small_cell_type %>%

    # Reshape and add classifier column
    pivot_longer(
        cols=c(label, first.labels),
        names_to="classifier", values_to="label"
    ) %>%

    # UMAP plots for cell type and cluster
    ggplot(aes(UMAP1, UMAP2, color=label)) +
    geom_point() +
    facet_wrap(~classifier) +
    my_theme

## tidySingleCellExperiment says: A data frame is returned for independent data analysis.

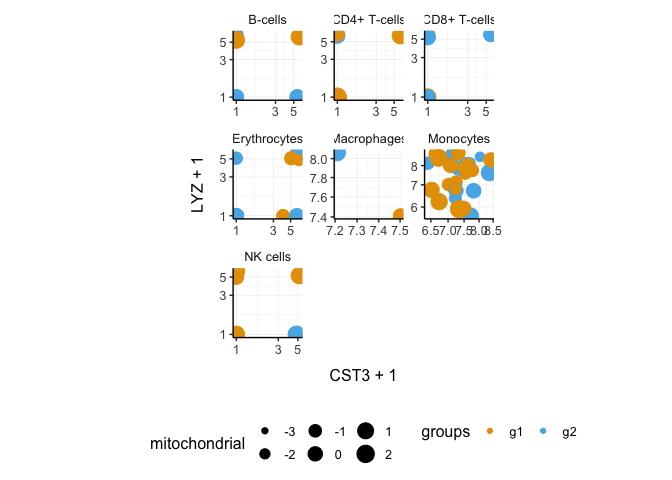

We can easily plot gene correlation per cell category, adding multi-layer annotations.

pbmc_small_cell_type %>%

    # Add some mitochondrial abundance values
    mutate(mitochondrial=rnorm(dplyr::n())) %>%

    # Plot correlation
    join_features(features=c("CST3", "LYZ"), shape="wide") %>%
    ggplot(aes(CST3 + 1, LYZ + 1, color=groups, size=mitochondrial)) +
    geom_point() +
    facet_wrap(~first.labels, scales="free") +
    scale_x_log10() +
    scale_y_log10() +
    my_theme

## tidySingleCellExperiment says: A data frame is returned for independent data analysis.

Nested analyses

A powerful tool we can use with tidySingleCellExperiment is tidyverse nest. We can easily perform independent analyses on subsets of the dataset. First we classify cell types into lymphoid and myeloid, and then nest based on the new classification.

pbmc_small_nested <-
    pbmc_small_cell_type %>%
    filter(first.labels != "Erythrocytes") %>%
    mutate(cell_class=dplyr::if_else(`first.labels` %in% c("Macrophages", "Monocytes"), "myeloid", "lymphoid")) %>%
    nest(data=-cell_class)

pbmc_small_nested

## # A tibble: 2 x 2
##   cell_class data
##   <chr>      <list>
## 1 lymphoid   <tidySingleCellExperiment>
## 2 myeloid    <tidySingleCellExperiment>

Now we can independently for the lymphoid and myeloid subsets (i) find variable features, (ii) reduce dimensions, and (iii) cluster using both tidyverse and SingleCellExperiment seamlessly.

pbmc_small_nested_reanalysed <-
    pbmc_small_nested %>%
    mutate(data=map(
        data, ~ {
            .x <- runPCA(.x, subset_row=variable_genes)

            variable_genes <-
                .x %>%
                modelGeneVar() %>%
                getTopHVGs(prop=0.3)

            colLabels(.x) <-
                .x %>%
                buildSNNGraph(use.dimred="PCA") %>%
                igraph::cluster_walktrap() %$%
                membership %>%
                as.factor()

            .x %>% runUMAP(ncomponents=3)
        }
    ))

pbmc_small_nested_reanalysed

## # A tibble: 2 x 2
##   cell_class data
##   <chr>      <list>
## 1 lymphoid   <tidySingleCellExperiment>
## 2 myeloid    <tidySingleCellExperiment>

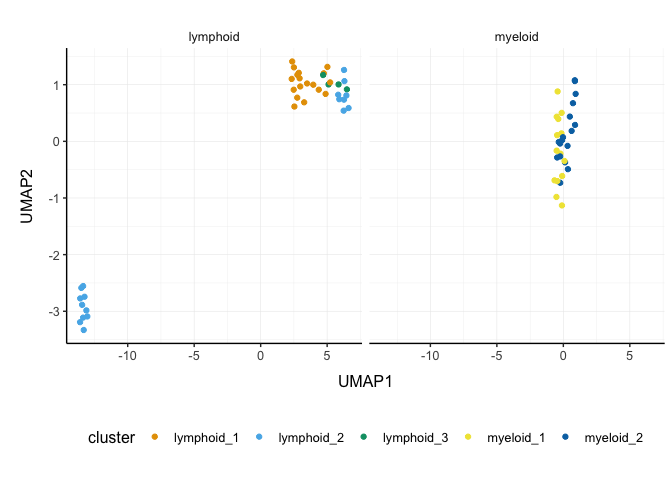

We can then unnest and plot the new classification.

pbmc_small_nested_reanalysed %>%

    # Convert to tibble otherwise SingleCellExperiment drops reduced dimensions when unifying data sets.
    mutate(data=map(data, ~ .x %>% as_tibble())) %>%
    unnest(data) %>%

    # Define unique clusters
    unite("cluster", c(cell_class, label), remove=FALSE) %>%

    # Plotting
    ggplot(aes(UMAP1, UMAP2, color=cluster)) +
    geom_point() +
    facet_wrap(~cell_class) +
    my_theme

We can perform a large number of functional analyses on data subsets. For example, we can identify intra-sample cell-cell interactions using SingleCellSignalR @cabello2020singlecellsignalr, and then compare whether interactions are stronger or weaker across conditions. The code below demonstrates how this analysis could be performed. It won’t work with this small example dataset as we have just two samples (one for each condition). But some example output is shown below and you can imagine how you can use tidyverse on the output to perform t-tests and visualisation.

pbmc_small_nested_interactions <-
    pbmc_small_nested_reanalysed %>%

    # Unnest based on cell category
    unnest(data) %>%

    # Create unambiguous clusters
    mutate(integrated_clusters=first.labels %>% as.factor() %>% as.integer()) %>%

    # Nest based on sample
    tidySingleCellExperiment::nest(data=-sample) %>%
    tidySingleCellExperiment::mutate(interactions=map(data, ~ {

        # Produce variables. Yuck!
        cluster <- .x@colData$integrated_clusters
        data <- data.frame(.x@assays@data %>% as.list() %>% .[[1]] %>% as.matrix())

        # Ligand/Receptor analysis using SingleCellSignalR
        data %>%
            cell_signaling(genes=rownames(data), cluster=cluster) %>%
            inter_network(data=data, signal=., genes=rownames(data), cluster=cluster) %$%
            `individual-networks` %>%
            map_dfr(~ bind_rows(as_tibble(.x)))
    }))

pbmc_small_nested_interactions %>%
    select(-data) %>%
    unnest(interactions)

If the dataset was not so small, and interactions could be identified, you would see something like below.

tidySingleCellExperiment::pbmc_small_nested_interactions

## # A tibble: 100 x 9
##    sample ligand receptor ligand.name receptor.name origin destination
##    <chr>  <chr>  <chr>    <chr>       <chr>         <chr>  <chr>
##  1 sampl… clust… cluster… PTMA        VIPR1         clust… cluster 2
##  2 sampl… clust… cluster… B2M         KLRD1         clust… cluster 2
##  3 sampl… clust… cluster… IL16        CD4           clust… cluster 2
##  4 sampl… clust… cluster… HLA-B       KLRD1         clust… cluster 2
##  5 sampl… clust… cluster… CALM1       VIPR1         clust… cluster 2
##  6 sampl… clust… cluster… HLA-E       KLRD1         clust… cluster 2
##  7 sampl… clust… cluster… GNAS        VIPR1         clust… cluster 2
##  8 sampl… clust… cluster… B2M         HFE           clust… cluster 2
##  9 sampl… clust… cluster… PTMA        VIPR1         clust… cluster 3
## 10 sampl… clust… cluster… CALM1       VIPR1         clust… cluster 3
## # … with 90 more rows, and 2 more variables: interaction.type <chr>,
## #   LRscore <dbl>
