scale_y_log10_reverse — scale_y_log10

A wrapper function that provides evenly spaced ticks with scientific notation for log10 reverse transformed y-axis. This is particularly useful for volcano plots and other plots showing p-values. The function applies a log10 transformation and reverses the axis to better visualize p-values without hard transforming the data, while maintaining the original p-value scale for interpretation. This allows you to see the full range of p-values with proper scaling while keeping the original values readable.

scale_y_log10_reverse(breaks = 5, digits = 2, ...)

Arguments

breaks: Number of breaks to display (default: 5)
digits: Number of digits for scientific notation (default: 2)
...: Additional arguments passed to scale_y_continuous

Value

A ggplot2 scale object

Details

`r lifecycle::badge("maturing")`

References

Mangiola, S., Molania, R., Dong, R., Doyle, M. A., & Papenfuss, A. T. (2021). tidybulk: an R tidy framework for modular transcriptomic data analysis. Genome Biology, 22(1), 42. doi:10.1186/s13059-020-02233-7

Wickham, H. (2016). ggplot2: Elegant Graphics for Data Analysis. Springer-Verlag New York. https://ggplot2.tidyverse.org

Examples


library(ggplot2)
library(tibble)

# Create test data
test_data <- tibble(
  pvalue = c(0.0001, 0.001, 0.01, 0.05, 0.1, 0.5),
  fold_change = 1:6
)

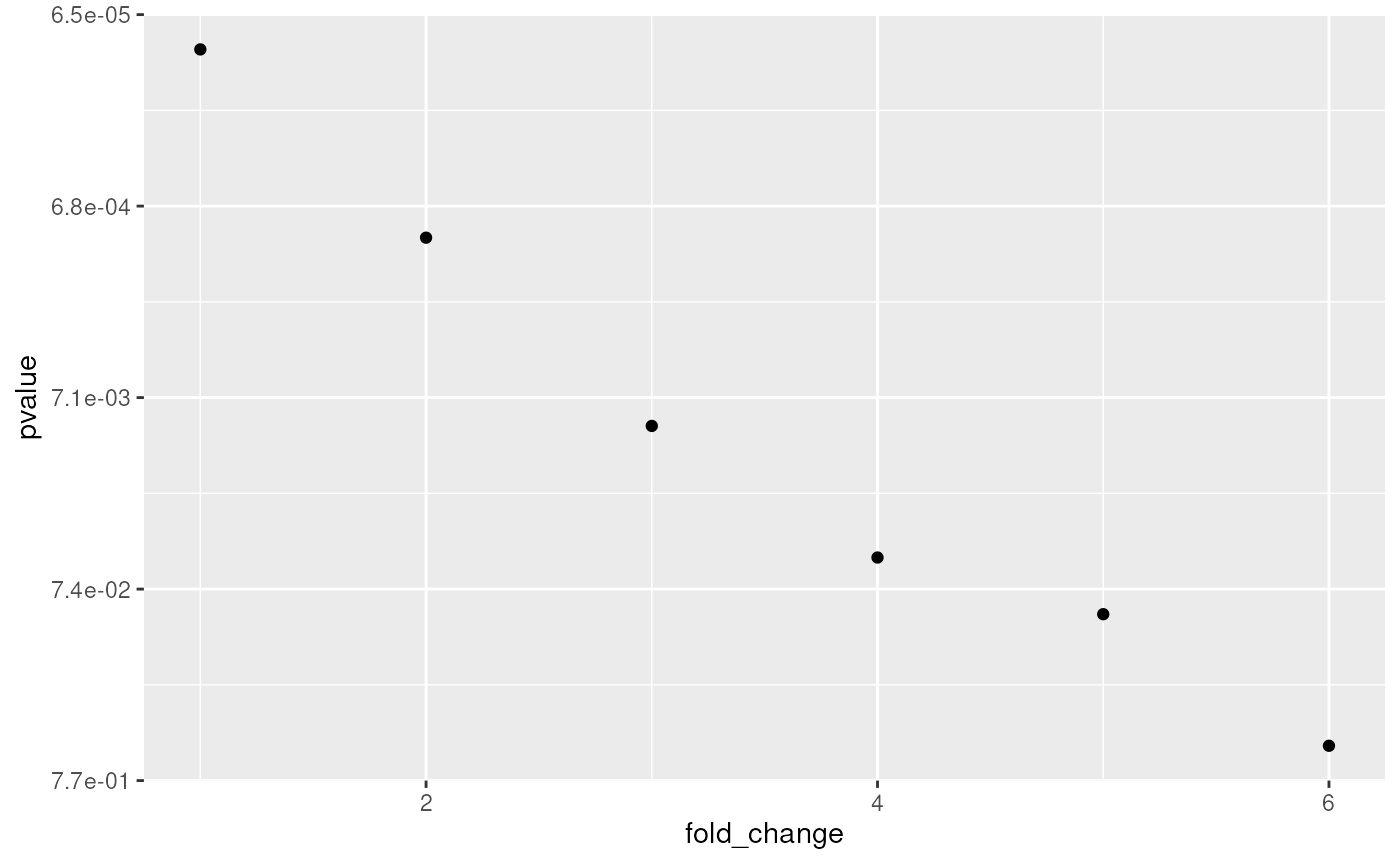

# Use the wrapper function
test_data |>
  ggplot(aes(fold_change, pvalue)) +
  geom_point() +
  scale_y_log10_reverse()
